When you translate a drawing from a CAD system to another, it's very important to map correctly fonts type. In our translator this task is easy.

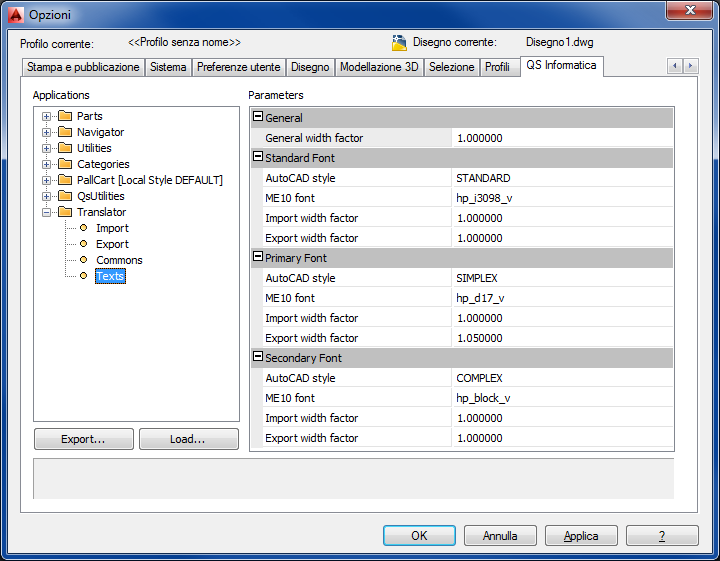

In "Fonts Substitution" we have to insert ME10 font names and AutoCAD Font names. When translator finds out one of this fonts during convertion task, it automatically chooses the correct font in the table. Is also possible to set the font style for ME10 dimensions.


TIP


You can map more then three fonts. If you open the ".INI" file you can see that there are 10 fonts that you can match.
