Matrix model
Matrix model

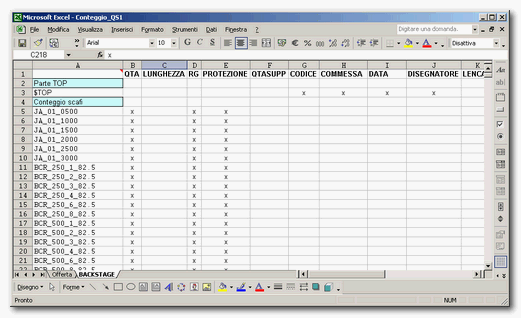

The matrix data sheet provides for the definition of the parts filter on the first column, while the first row defines the attributes to extract. For each row of the spreadsheet, you must specify attributes to be extracted by inserting an 'x' in the cell in correspondence of the column attribute.
The first column follows the same rules of the ATTRIB column of the column model.
The program will perform a scan of the sheet to create a map of the attributes to be extracted for each row. Numeric attributes will be added while the non-numerical attributes will be inserted into the cell. In this case, the latest part found overwrites the previous values.
Upon the launch of counting, the x will be removed automatically by the software.
